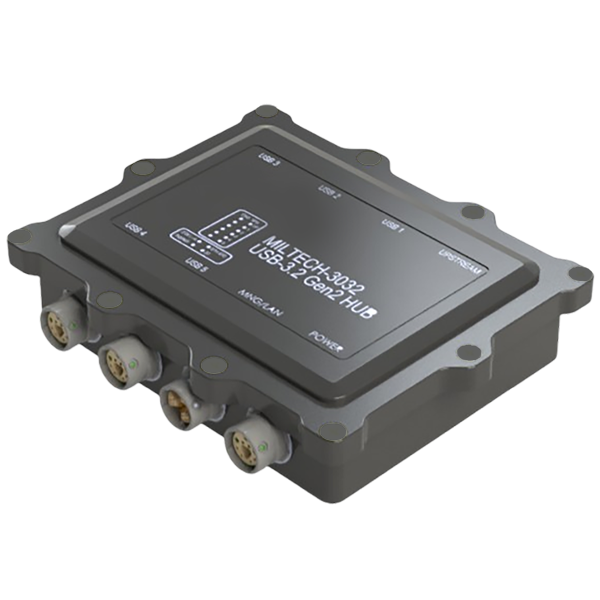

MILTECH 3032 6-Port USB 3.2 Gen-2 HUB with Ultra Fast USB Charger

Download Data Sheet Here
Key Features
Product Type:USB HUBs
Management:Managed
Ports:
1 x USB3.2 Gen-2
6 x 10/100/1000M
Connectors:
USB: Fischer MiniMax Push-Pull
LAN: Fischer MiniMax Push-Pull
Power: Fischer MiniMax Push-Pull
Designed to Meet:MIL-STD-810 | MIL-STD-461
Dimensions:4.8" X 4.02" X 1.08"122mm X 102mm X 27.5mm
Weight:6.7oz190g
Operating Temp.:-40°C to 85°C
Power input:24VDC (6 - 34VDC), 4.6W
Power output:20VDC, 5A per port
Special Features: USB PD/QC 3.0

Advanced Rugged Tactical 6-Port USB 3.2 Gen-2 HUB and Ultra Fast USB Charger.

Standard Configurations
Model Description
MILTECH 3032 Additional configurations available
Description
MILTECH™ 3032 is a Rugged Tactical 6 Port USB 3.2 Gen-2 (10Gbps) HUB that combines also ultra-fast charging functionality.
The integrated charger is supporting the latest advanced charge standards such as Power Delivery 3.0, QC 3.0, PPS as well as legacy standards.
The unit provides USB Power Delivery charging of up to 100W (20V/5A) per port simultaneously with the high speed USB data connectivity.
MILTECH 3032 supports optional external management via a dedicated USB port (PDOs per port, port priorities etc) as well as 1000Base-T port for the external host Ethernet connectivity.
