What form factors are available across the line?

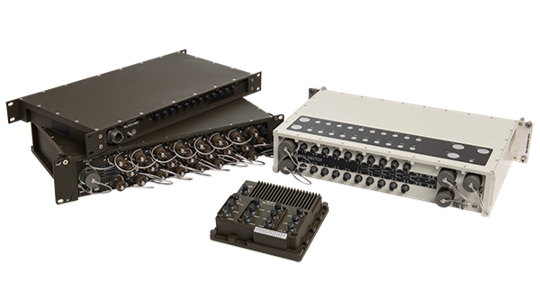

There are two main mechanical formats. Some units are 19-inch rack-mount chassis (1U or 2U) intended for shipboard and shelter installations, and others are low-profile, conduction-cooled boxes with circular connectors for mounting directly on vehicles or in tight spaces. All are passively cooled with no moving parts, so there are no fans to service or fail.

What connector and I/O options can I get, and are they configurable?

The line supports copper Ethernet (10/100/1000 and 10G), fiber optic ports (1G and 10G, single-mode or multi-mode), and on some units serial RS232 and timing I/O. Connectors are ruggedized circular types such as D38999 and Amphenol SCE2, and several models let you choose the port count, fiber type, and connector style through an ordering code. If you need a configuration not shown, the sales team can advise on available options.

Is the Cisco router license included and can I change the throughput later?

On the Cisco-integrated models the router license is selected at order time and sets the routing throughput, with options such as 25Mbps, 200Mbps, and 1Gbps tiers shown in the ordering tables. The base part number without a license ship with the standard OS and no Cisco routing enabled.

Do Bel Aerospace & Defense routers support high-speed Fiber and Ethernet connectivity?

Yes. Many rugged router models support Gigabit Ethernet, 10G Fiber, and copper interfaces to handle large volumes of real-time voice, video, and sensor data. These high-speed capabilities are ideal for modern military communication systems and data-intensive defense applications.

What power input does these units require, and is AC an option?

Units run on nominal 24VDC or 28VDC with wide input ranges (roughly 18 to 48V or higher depending on the model) and include MIL-STD-1275/704 surge and spike protection. Several models also offer an AC power version (90 to 230VAC) and some support a redundant power connection for added survivability. Check the specific model's power section, since the input range and consumption vary across the line.

Where do I find detailed integration documentation such as pinouts, mechanical drawings, and an ICD?

Each datasheet includes outline drawings, connector part numbers, and mounting details useful for early integration planning. For a full Interface Control Document (ICD), detailed pinouts, or test reports, contact the manufacturer directly at sales-aerodef@belf.com, as these items are not published in the datasheets themselves.

Rugged Routers - Bel Aerospace & Defense | International Military Power and Communication Solutions

Frequently Asked Questions

All units in this line are fully managed, military-grade switches and routers with L2/L3 capabilities. You can configure and monitor them remotely through Web UI, CLI, Telnet, and SNMP, with HTTPS and SSH available on the TSN models. This lets you set up VLANs, QoS, port security, and link aggregation without physical access to the unit.
