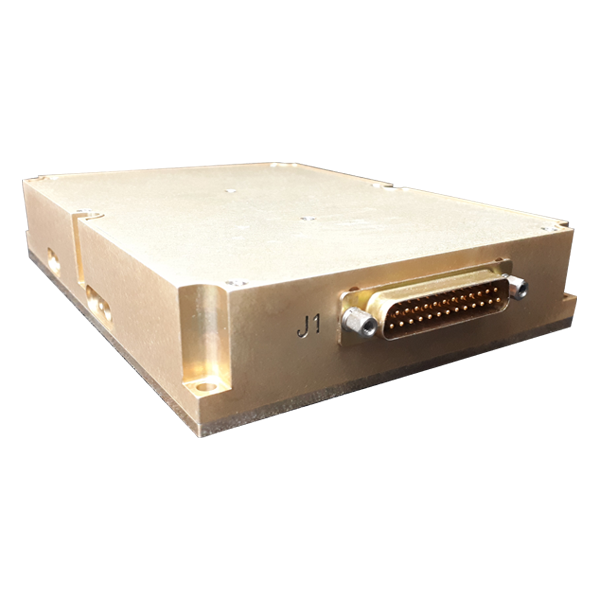

M7531 Series DC-DC Power Supplies

Key Features
Product Type:Power Supply (Converter)
Input:18-50DC
Output(s):One
Output Power:1000W
Efficiency:88%
Operating Temp.:-55°C to 85°C
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-461
Standard Configurations
Model Power Output 1
M7531-801 600W 12V @ 50A
M7531-802 750W 15V @ 50A
M7531-803 1008W 24V @ 42A
M7531-804 1008W 28V @ 36A
M7531-805 960W 48V @ 20A
M7531 Additional configurations available

* Our products are configured to comply with EU REACH regulations. Contact Us today to learn more.

Base Specifications
Form Factor:Baseplate Mount
Weight:38.8oz1100g
Dimensions:6.4" X 4.76" X 1.29"162.56mm X 120.9mm X 32.77mm
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Output Range(V min to V max @ A max)
#1 18V to 48V @ 36A
Description

SINGLE-OUTPUT, 1000W DC TO DC BASEPLATE COOLED POWER SUPPLY
