| Product Type: | USB HUBs |
| Management: | Unmanaged |
| Ports: | 8 x USB2.0 |
| Connectors: | Power: SCE2 USB: SCE2 |
| Designed to Meet: | MIL-STD-810 | MIL-STD-461 | IP68 |
| Dimensions: | 3.23" X 2.52" X 1.02"82mm X 64mm X 26mm |
| Weight: | 4.94oz140g |
| Operating Temp.: | -40°C to 85°C |
| Power input: | 5VDC 24VDC (8 - 28VDC) 2W |
For all your requirements, we’ll custom design a solution to fit your needs

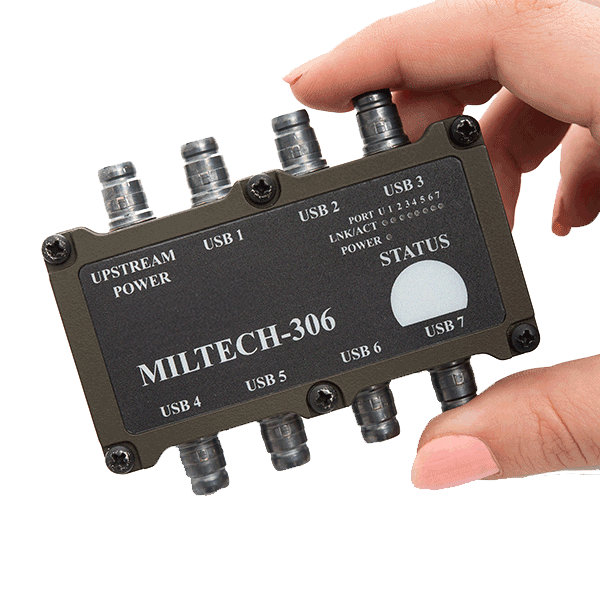

CONTACT US TODAYOne of the smallest solutions in the industry, the MILTECH 306 reduces load on the soldier, providing more space for equipment that increases mission awareness and success.
The unit may be operated in any of the two modes: 5V USB bus-powered (by external USB host) or USB self-powered mode (form external 8-28V DC source) when more power is required for downstream devices.
All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +49 42-61 9429979. Configurations created for specific requirements will be assigned a new variant part number.
All our power and networking solutions are configurable. Work directly with our experienced engineers to tailor one of our mature designs – power input & output range, voltage & current levels, connector style, number of ports, form factor, additional compute hosting, MIL-STD compliance, and much more – our team can create a power or networking solution for your unique application with minimal or no NRE investment.
We are also experienced in developing custom solutions from specifications, addressing unique design challenges - saving you platform space, integration risk, and development time.
|
