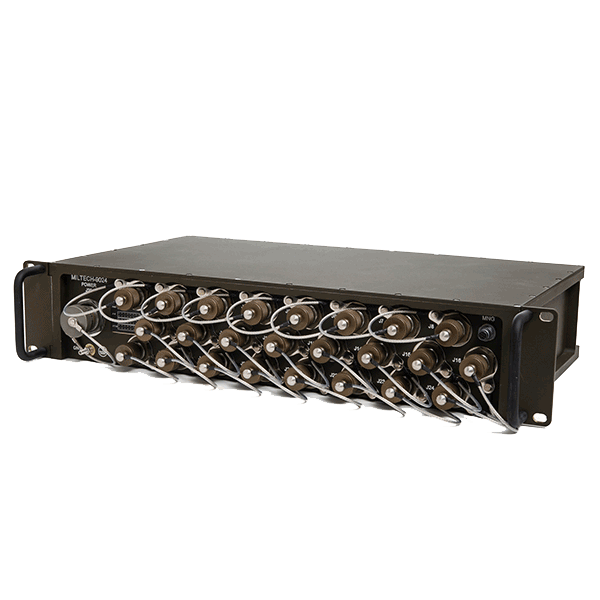

MILTECH 9024 Military Managed Gigabit Ethernet Router/Switch with D38999 Connectors - 24 Port

Download Data Sheet Here

Key Features

ImperialMetric

Product Type:	Router
Management:	Managed
Ports:	24 x 10/100/1000M Copper
Connectors:	Power: D38999 LAN: D38999 LAN: SCE2
Designed to Meet:	MIL-STD-1275 \| MIL-STD-704 \| MIL-STD-810 \| MIL-STD-461 \| IP67
Dimensions:	19.02" X 10.63" X 3.46"483mm X 270mm X 88mm
Weight:	194.01oz5500g
Operating Temp.:	-45°C to 80°C
Power input:	24VDC (18 - 32VDC) 220VAC (90 - 230VAC) 30W

The MILTECH 9024 has 24 triple-speed (10/100/1000Mbps) ports using D38999 connectors and features both L2/L3 network switching and routing capabilities.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

Standard Configurations

	Model	Description
	1-9024-000	Military Managed 24 Ports 1G, D38999 conn Rugged Switch/Router & DC P.S
	1-9024AC-000	Military Managed 24 Ports 1G, D38999 conn Rugged Switch/Router & AC P.S
	MILTECH 9024	Additional configurations available

Description

The MILTECH 9024 is specifically designed for battlefield C4ISR, voice, video, sensor data acquisition and communications in platforms that handle large quantities of real-time data. With 1G transmission speed and 24VDC power, it is instantly compatible with network devices and power systems. An optional redundant power connection adds to overall system survivability.

Layer 2 management includes including virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 support, and bandwidth aggregation. It supports all the latest networking protocols for redundancy, security, multicast, and management.

Developed for military and harsh ground applications, the MILTECH9024’s mechanical packaging enhancements are designed for MIL-STD-810G airborne and ground environmental compliance and high reliability. The unit has been especially hardened to improve ingress, impact, and shock/vibration protection, as well as eliminate all moving parts through the use of passive cooling.

Resources

MILTECH 9024 Data Sheet

Tailored Products to Meet Your Requirements

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +49 42-61 9429979. Configurations created for specific requirements will be assigned a new variant part number.

Learn More

Not seeing the exact solution you require?
We can help with modified-off-the-shelf and custom solutions!

Modified Off The Shelf Solutions

All our power and networking solutions are configurable. Work directly with our experienced engineers to tailor one of our mature designs – power input & output range, voltage & current levels, connector style, number of ports, form factor, additional compute hosting, MIL-STD compliance, and much more – our team can create a power or networking solution for your unique application with minimal or no NRE investment.

We are also experienced in developing custom solutions from specifications, addressing unique design challenges - saving you platform space, integration risk, and development time.
