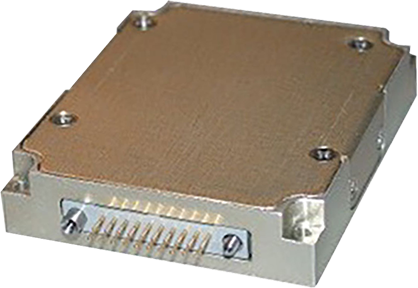

DC-DC Power Supplies

Performance. Reliability. Safety.

Filter products
Categories
Category filters
No filters for this category
Voltage:
All Input voltage range 12V - 70V Input voltage range 220V - 350V
# of Outputs:
All One Two Three Four Five Six Seven Eight Nine Ten
Phase:
All Single Phase Three Phase
# of Outputs:
All One Two Three Four Five
Input:
All AC DC
Type:
All Power Supply Holdup Unit
DC-DC Power Supplies
Baseplate Mount
Input voltage range 12V - 70V
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
One Output
M741950W2.35" X 2" X 0.49"59.69mm X 50.8mm X 12.45mm28V
1.8V - 50V
10A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M700975W3.26" X 1.83" X 0.72"82.8mm X 46.48mm X 18.29mm28V
3.3V - 56V
10A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7019100W3.26" X 1.83" X 0.72"82.8mm X 46.48mm X 18.29mm28V
3.3V - 56V
15A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7420100W2.95" X 1.77" X 0.61"75mm X 45mm X 15.5mm28V
3.3V - 50V
10A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M6211200W4.38" X 2.76" X 0.61"111.25mm X 70.1mm X 15.49mm28V
1.5V - 28V
40A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M6212200W5.18" X 2.76" X 0.73"131.45mm X 70mm X 18.49mm28V
1.5V - 28V
40A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7017200W5.32" X 2.76" X 0.81"135mm X 70.1mm X 20.57mm28V
1.5V - 60V
15A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7028200W4.14" X 2.56" X 0.55"105.16mm X 65.02mm X 13.97mm28V
3.3V - 50V
20A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7128200W4.38" X 2.6" X 0.55"111.25mm X 66.04mm X 13.97mm28V  MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7228200W4.38" X 2.76" X 0.61"111.2mm X 70mm X 15.49mm28V
2V - 15V
50A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7318200W4.2" X 2.5" X 0.5"106.68mm X 63.5mm X 12.7mm28V
3.3V - 50V
18A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7719200W3.26" X 1.83" X 0.72"82.8mm X 46.48mm X 18.29mm28V
12V - 28V
10A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M7029300W3.75" X 2.76" X 0.81"95.25mm X 70.1mm X 20.57mm28V
5V - 50V
20A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7429300W10.63" X 5.91" X 2.4"270mm X 150mm X 61mm28V
18V - 50V
 MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7729400W3.27" X 3.23" X 0.8"83.06mm X 82.04mm X 20.32mm28V
18V - 50V
20A
MIL-STD-810, MIL-STD-461
M4244500W6.5" X 4.5" X 0.85"165.1mm X 114.3mm X 21.59mm28V
3.3V - 400V
30A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M6500500W5.4" X 3.1" X 0.67"137.16mm X 78.74mm X 17.02mm28V
3.3V - 28V
70A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7027500W5.31" X 2.76" X 0.81"134.87mm X 70.1mm X 20.57mm28V
5V - 50V
40A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7127500W5.91" X 2.76" X 0.81"150.11mm X 70.1mm X 20.57mm28V
5V - 50V
40A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7325500W4.6" X 3.6" X 0.8"116.84mm X 91.44mm X 20.32mm28V
3.3V - 50V
21A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7727500W5.31" X 2.76" X 0.81"134.87mm X 70.1mm X 20.57mm28V
12V - 50V
40A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7425800W6.24" X 4.64" X 1.15"158.5mm X 117.86mm X 29.21mm28V
3.3V - 50V
50A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7525800W6.24" X 4.64" X 1.15"158.5mm X 117.86mm X 29.21mm28V
3.3V - 50V
50A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M75281000W6.4" X 4.76" X 1.29"162.5mm X 120.8mm X 32.7mm28V
12V - 50V
50A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M75291000W10.63" X 5.91" X 2.4"270mm X 150mm X 61mm28V
12V - 48V
 MIL-STD-704, MIL-STD-810, MIL-STD-461
M75311000W6.4" X 4.76" X 1.29"162.56mm X 120.9mm X 32.77mm28V
18V - 48V
36A
MIL-STD-1275, MIL-STD-704, MIL-STD-461
Two Outputs
M278630W2.35" X 2" X 0.49"59.69mm X 50.8mm X 12.45mm28V
#1:2.5V - 28V
#2:2.5V - 28V
#1:3A
#2:3A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M71260W2.95" X 2.95" X 0.71"74.93mm X 74.93mm X 18.03mm28V
#1:1.8V - 50V
#2:1.8V - 50V
#1:5A
#2:5A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M872780W2.6" X 3.75" X 0.5"66.04mm X 95.25mm X 12.7mm28V
#1:1.5V - 70V
#2:1.5V - 70V
#1:10A
#2:10A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8053125W5.06" X 2.7" X 0.61"128.52mm X 68.58mm X 15.49mm28V
#1:3.3V - 28V
#2:3.3V - 28V
#1:10A
#2:10A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8253200W5.4" X 3.1" X 0.61"137.16mm X 78.74mm X 15.49mm28V
#1:2.5V - 50V
#2:2.5V - 50V
#1:12A
#2:12A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8254200W5.51" X 3.09" X 1"140mm X 78.51mm X 25.4mm28V
#1:3.3V - 48V
#2:3.3V - 48V
#1:18A
#2:12A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Three Outputs
M873750W2.2" X 3.75" X 0.5"55.88mm X 95.25mm X 12.7mm28V
#1:1.8V - 70V
#2:2.5V - 24V
#3:2.5V - 24V
#1:10A
#2:2.5A
#3:1.25A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
813960W2.16" X 3.1" X 0.5"54.86mm X 78.74mm X 12.7mm28V
#1:1V - 15V
#2:1.8V - 24V
#3:1.8V - 24V
#1:8A
#2:3A
#3:1.25A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8337125W4.73" X 3.54" X 0.61"120.14mm X 89.92mm X 15.49mm28V
#1:3.3V - 28V
#2:3.3V - 28V
#3:7V - 28V
#1:10A
#2:6A
#3:6A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8637125W4.53" X 3.54" X 0.61"115.06mm X 89.92mm X 15.49mm28V
#1:3.3V - 28V
#2:3.3V - 28V
#3:7V - 28V
#1:10A
#2:6A
#3:6A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M7338600W6.5" X 4.75" X 0.7"165.1mm X 120.65mm X 17.78mm28V
#1:1.8V - 50V
#2:1.8V - 50V
#3:1.8V - 50V
#1:16A
#2:16A
#3:16A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Four Outputs
M71460W2.95" X 2.95" X 0.92"74.93mm X 74.93mm X 23.37mm28V
#1:1.8V - 50V
#2:1.8V - 50V
#3:1.8V - 28V
#4:1.8V - 28V
#1:5A
#2:5A
#3:2A
#4:2A
MIL-STD-1275, MIL-STD-704, MIL-STD-810
M814960W2.16" X 3.1" X 0.5"54.86mm X 78.74mm X 12.7mm28V
#1:2.5V - 28V
#2:1.8V - 24V
#3:1.8V - 24V
#4:1.8V - 24V
#1:1.5A
#2:3A
#3:1.25A
#4:1.25A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M834960W3.65" X 2.16" X 0.5"92.71mm X 54.86mm X 12.7mm28V
#1:5V
#2:5V
#3:15V
#4:15V
#1:1A
#2:1A
#3:0.5A
#4:0.5A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8747100W2.75" X 4.4" X 0.5"69.85mm X 111.76mm X 12.7mm28V
#1:1.8V - 50V
#2:1.8V - 50V
#3:1.8V - 24V
#4:1.8V - 24V
#1:16A
#2:10A
#3:1.25A
#4:1.25A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8647125W4.53" X 3.9" X 0.61"115.06mm X 99.06mm X 15.49mm28V
#1:3.3V - 28V
#2:3.3V - 28V
#3:3.3V - 28V
#4:3.3V - 30V
#1:12A
#2:6A
#3:6A
#4:3A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8453150W5.5" X 3.25" X 0.61"139.7mm X 82.55mm X 15.49mm28V
#1:2.5V - 50V
#2:2.5V - 50V
#3:1.24V - 26V
#4:1.24V - 26V
#1:20A
#2:20A
#3:1.25A
#4:1.25A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8696200W6.99" X 3.19" X 1.1"177.6mm X 81.08mm X 27.94mm28V
12V - 48V
10.5V-36V / 18V-48VA
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Five Outputs
M8757100W2.75" X 4.49" X 0.5"69.85mm X 114.05mm X 12.7mm28V
#1:1V - 50V
#2:1.8V - 24V
#3:1.8V - 24V
#4:1.8V - 24V
#5:2.5V - 24V
#1:20A
#2:3A
#3:3A
#4:1.25A
#5:1.25A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8657125W4.92" X 3.9" X 0.61"124.97mm X 99.06mm X 15.49mm28V
#1:3.3V - 28V
#2:3.3V - 28V
#3:3.3V - 28V
#4:3.3V - 28V
#5:3.3V - 24V
#1:6A
#2:6A
#3:6A
#4:3A
#5:1.5A
MIL-STD-1275, MIL-STD-704, MIL-STD-461
Six Outputs
M876780W2.5" X 3.9" X 0.5"63.5mm X 99.06mm X 12.7mm28V
#1:5V - 28V
#2:1.8V - 24V
#3:1.8V - 24V
#4:1.8V - 24V
#5:1.8V - 24V
#6:1.8V - 24V
#1:1A
#2:1.25A
#3:3A
#4:1.25A
#5:1.25A
#6:1.25A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8667125W4.92" X 3.9" X 0.61"124.97mm X 99.06mm X 15.49mm28V
#1:3.3V - 28V
#2:3.3V - 28V
#3:3.3V - 28V
#4:3.3V - 28V
#5:3.3V - 24V
#6:3.3V - 24V
#1:6A
#2:6A
#3:6A
#4:3A
#5:1.25A
#6:1.25A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M1132320W6.22" X 3.74" X 1"158mm X 95mm X 25.4mm28V
#1:3.3V - 12V
#2:3.3V - 6V
#3:3.3V - 6V
#4:-20V - -3.3V
#5:2V - 2.5V
#6:10V - 28V
#1:10A
#2:30A
#3:15A
#4:4A
#5:2A
#6:0.65A
MIL-STD-704, MIL-STD-810, MIL-STD-461
Eight Outputs
M810880W3.07" X 2.17" X 0.57"78mm X 55mm X 14.5mm28V  MIL-STD-1275, MIL-STD-704, MIL-STD-461
M802145W5.1" X 4.1" X 0.61"129.54mm X 104.14mm X 15.49mm28V
#1:1.8V - 50V
#2:1.8V - 50V
#3:1.8V - 50V
#4:1.8V - 28V
#5:1.8V - 28V
#6:1.8V - 50V
#7:1.8V - 50V
#8:1.8V - 50V
#1:6A
#2:6A
#3:6A
#4:9A
#5:9A
#6:6A
#7:2A
#8:2A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M811145W6.5" X 3.3" X 0.61"165.1mm X 83.82mm X 15.49mm28V
#1:1.8V - 50V
#2:1.8V - 50V
#3:1.8V - 50V
#4:1.8V - 50V
#5:1.8V - 50V
#6:1.8V - 50V
#7:1.8V - 50V
#8:1.8V - 50V
#1:2A
#2:3A
#3:3A
#4:5A
#5:8A
#6:4A
#7:2A
#8:2A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M814145W6.5" X 3.3" X 0.61"165.1mm X 83.82mm X 15.49mm28V
#1:1.8V - 50V
#2:1.8V - 50V
#3:1.8V - 50V
#4:1.8V - 28V
#5:1.8V - 28V
#6:1.8V - 50V
#7:1.8V - 50V
#8:1.8V - 50V
#1:12A
#2:6A
#3:6A
#4:3A
#5:3A
#6:3A
#7:3A
#8:3A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Nine Outputs
M635250W7.85" X 4.37" X 0.81"199.39mm X 111mm X 20.57mm28V
#1:3.3V - 28V
#2:3.3V - 28V
#3:3.3V - 28V
#4:3.3V - 28V
#5:3.3V - 28V
#6:3.3V - 50V
#7:1.8V - 50V
#8:1.8V - 50V
#9:1.8V - 50V
#1:10A
#2:5A
#3:5A
#4:5A
#5:5A
#6:5A
#7:5A
#8:5A
#9:5A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M641250W8" X 4.72" X 0.81"203.2mm X 119.89mm X 20.5mm28V  MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Ten Outputs
M8110150W5.1" X 4.1" X 0.61"129.54mm X 104.14mm X 15.49mm28V
#1:1.8V - 50V
#2:1.8V - 50V
#3:1.8V - 50V
#4:1.8V - 50V
#5:1.8V - 50V
#6:3.3V - 50V
#7:1.8V - 50V
#8:1.8V - 50V
#9:1.8V - 50V
#10:1.8V - 50V
#1:2A
#2:5A
#3:5A
#4:2.5A
#5:2.5A
#6:0.7A
#7:2.5A
#8:5A
#9:2A
#10:2A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Input voltage range 220V - 350V
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
One Output
M6201200W4.14" X 2.77" X 0.61"105.16mm X 70.36mm X 15.49mm270V
1.8V - 60V
36A
MIL-STD-810, MIL-STD-461
M7429300W10.63" X 5.91" X 2.4"270mm X 150mm X 61mm28V
18V - 50V
 MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M6204400W5.4" X 3.5" X 0.75"137.16mm X 88.9mm X 19.05mm270V
1.8V - 28V
50A
MIL-STD-810, MIL-STD-461
M6203500W5.91" X 2.56" X 0.76"150.11mm X 65.02mm X 19.3mm270V
3.3V - 50V
30A
MIL-STD-810, MIL-STD-461
M81831000W6.44" X 3.7" X 1.5"163.58mm X 93.98mm X 38.1mm270V
5V - 50V
42A
MIL-STD-810, MIL-STD-461
M81862000W6.9" X 5.81" X 1.6"175.26mm X 147.57mm X 40.64mm270V
5V - 60V
80A
MIL-STD-810, MIL-STD-461
M81872000W7.65" X 5.81" X 1.6"194.31mm X 147.57mm X 40.64mm270V
5V - 60V
80A
MIL-STD-810, MIL-STD-461
PCB Mount
Input voltage range 12V - 70V
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
One Output
M711715W2.17" X 1.18" X 0.48"55mm X 30mm X 12.3mm28V
2.5V - 28V
4A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M78525W1.99" X 1.99" X 0.49"50.5mm X 50.5mm X 12.5mm28V  MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M711950W1.99" X 1.99" X 0.49"50.5mm X 50.5mm X 12.5mm28V
2.5V - 50V
8A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Two Outputs
M78786W1.38" X 1.38" X 0.49"35mm X 35mm X 12.5mm28V
#1:3.3V - 15V
#2:3.3V - 15V
#1:0.25A
#2:0.25A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M78796W1.97" X 1.02" X 0.49"50mm X 26mm X 12.5mm28V
#1:3.3V - 15V
#2:3.3V - 15V
#1:0.25A
#2:0.25A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M711520W2.48" X 1.18" X 0.59"63mm X 30mm X 15mm28V
#1:1.5V - 48V
#2:1.5V - 48V
#1:3A
#2:1.5A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M78630W1.99" X 1.99" X 0.49"50.5mm X 50.5mm X 12.5mm28V
#1:1.8V - 50V
#2:1.8V - 50V
#1:4A
#2:4A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M8263150W5" X 1.81" X 0.87"127mm X 46mm X 22mm28V
#1:3.3V - 12V
#2:1.2V - 5.5V
#1:10A
#2:10A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Three Outputs
M64720W2.56" X 1.99" X 0.51"65.02mm X 50.55mm X 12.95mm28V
#1:2.5V - 28V
#2:2.5V - 28V
#3:2.5V - 28V
#1:2A
#2:2A
#3:2A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Four Outputs
M797140W2.56" X 2.07" X 0.63"65mm X 52.5mm X 16mm28V  MIL-STD-810, MIL-STD-461
M787450W2.95" X 2.6" X 0.52"74.9mm X 66mm X 13.1mm28V
#1:1.8V - 28V
#2:1.8V - 28V
#3:1.8V - 50V
#4:3.3V - 24V
#1:5A
#2:5A
#3:3A
#4:1.25A
MIL-STD-810, MIL-STD-461
Five Outputs
M715530W2.36" X 1.18" X 0.49"59.99mm X 30mm X 12.45mm28V  MIL-STD-810, MIL-STD-461
M715930W2.4" X 1.3" X 0.39"60.96mm X 33.02mm X 9.91mm28V
#1:5V - 15V
#2:1V - 3.3V
#3:3.3V - 24V
#4:3.3V - 24V
#5:3.3V - 24V
#1:3A
#2:3A
#3:0.4A
#4:0.4A
#5:0.4A
MIL-STD-810
VPX 3U
Input voltage range 220V - 350V
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
Two Outputs
M4096800W3U, 1"3U, 1"270V
3.3V - 12V
30A
MIL-STD-704, MIL-STD-810
VPX 6U
DC-DC Holdup Units
Baseplate Mount
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M1255 W2.56" X 2.15" X 0.63"65mm X 54.6mm X 16mm28V
18V - 48V
12A
MIL-STD-1275, MIL-STD-810, MIL-STD-461
M255 2.15" X 2.56" X 0.55"54.61mm X 65.02mm X 13.97mm28V
18V - 48V
12A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M2501.5J3.7" X 2.56" X 0.55"93.98mm X 65.02mm X 13.97mm28V
18V - 48V
12A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M2567J4.53" X 4.72" X 0.55"115mm X 120mm X 14mm28V
18V - 48V
12A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
VPX 3U
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M416248J3U, 1"3U, 1"28V
1V - 85V
 MIL-STD-704, MIL-STD-810, MIL-STD-461
M4262800W3U, 0.97"3U, 0.97"270V
270V
A
MIL-STD-704, MIL-STD-461
AC-DC Power Supplies
Free Air Convection Cooled
Single Phase Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
One Output
M13261000W12" X 9" X 10.5"304.8mm X 228.6mm X 266.7mm115/230V 1Ø
3.3V - 300V
80A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M66202520W18.71" X 7.48" X 7.32"475.15mm X 190mm X 186mm85ac~264acV 1Ø
23V - 31V
50A
MIL-STD-704, MIL-STD-810, MIL-STD-461
Baseplate Mount
Single Phase Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
One Output
M911150W6.3" X 3.15" X 1.77"160mm X 80mm X 45mm115V 1Ø
3.3V - 24V
0 to 15AA
MIL-STD-704, MIL-STD-1399, MIL-STD-810, MIL-STD-461
M1981200W6.2" X 4.6" X 0.79"157.48mm X 116.84mm X 20.07mm115/230V 1Ø
3.3V - 48V
20A
MIL-STD-704, MIL-STD-1399, MIL-STD-810, MIL-STD-461
M1982300W7" X 4.7" X 0.85"177.8mm X 119.38mm X 21.59mm115/230V 1Ø
3.3V - 48V
20A
MIL-STD-704, MIL-STD-1399, MIL-STD-810, MIL-STD-461
M1986300W6.99" X 4.7" X 1.18"177.6mm X 119.4mm X 30mm115/230V 1Ø
24V - 50V
12.5A
MIL-STD-1399, MIL-STD-810, MIL-STD-461, IEC 62368-1
M3916500W5" X 8" X 1.18"127mm X 203.2mm X 29.97mm115V 1Ø
24V - 50V
20A
MIL-STD-1399, MIL-STD-810, MIL-STD-461, IEC 62368-1
M916500W8" X 5" X 0.9"203.2mm X 127mm X 22.86mm115/230V 1Ø
3.3V - 300V
50A
MIL-STD-810, MIL-STD-461
M1091000W9.84" X 5.5" X 1"249.94mm X 139.7mm X 25.4mm115V 1Ø
5V - 60V
80A
MIL-STD-704, MIL-STD-1399, MIL-STD-810, MIL-STD-461
M1691000W9.84" X 5.51" X 1.5"249.94mm X 139.95mm X 38.1mm115/230V 1Ø
3.3V - 300V
80A
MIL-STD-810, MIL-STD-461
M31691000W11" X 7.25" X 3.1"279.4mm X 184.15mm X 78.74mm115V 1Ø
5V - 270V
36A
MIL-STD-704, MIL-STD-1399, MIL-STD-810, MIL-STD-461
M61691000W11" X 7.25" X 3.1"279.4mm X 184.15mm X 78.74mm115/230V 1Ø
5V - 48V
42A
MIL-STD-704, MIL-STD-1399, MIL-STD-810, MIL-STD-461
Two Outputs
M1912300W4.7" X 7" X 1.18"119.4mm X 177.8mm X 30mm115/230V 1Ø
#1:12V - 48V
#2:3.3V - 12V
#1:20A
#2:5A
MIL-STD-704, MIL-STD-1399, MIL-STD-810, MIL-STD-461, IEC 62368-1
Three Outputs
M1963130W5.19" X 3.7" X 0.79"131.83mm X 93.98mm X 20.07mm115/230V 1Ø
#1:0.8V - 40V
#2:0.8V - 40V
#3:0.6V - 5V
#1:5A
#2:5A
#3:8A
MIL-STD-810, MIL-STD-461
M1965130W5.19" X 4" X 0.79"131.93mm X 101.6mm X 20.07mm115/230V 1Ø
#1:0.8V - 12V
#2:0.8V - 12V
#3:0.6V - 5V
#1:5A
#2:5A
#3:5A
MIL-STD-1399, MIL-STD-810, MIL-STD-461
Four Outputs
M185150/230W6.34" X 8.19" X 0.81"161.04mm X 208.03mm X 20.57mm115/230V 1Ø
#1:3.3V - 24V
#2:3.3V - 24V
#3:3.3V - 24V
#4:1.8V - 15V
#1:5A
#2:5A
#3:10A
#4:30A
MIL-STD-810, MIL-STD-461
Three Phase Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
One Output
M391300W6" X 5.49" X 1.25"152.4mm X 139.37mm X 31.75mm115V 3Ø
#1:5V
#2:3.3V
#3:8.5V
#4:8.5V
#5:13V
#6:13V
#7:5V
#1:15A
#2:6A
#3:6.5A
#4:2A
#5:9A
#6:3A
#7:2.5A
MIL-STD-810, MIL-STD-461
M1156500W5.67" X 3.5" X 1.18"144.02mm X 88.9mm X 29.97mm115V 3Ø
5V - 50V
25A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M1158500W6.1" X 3.8" X 1.18"154.94mm X 96.52mm X 29.97mm115V 3Ø
5V - 50V
25A
MIL-STD-810, MIL-STD-461
M2701500W6.5" X 4.39" X 1.18"165.1mm X 111.51mm X 29.97mm115V 3Ø
100V - 320V
5A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M1831000W6.44" X 3.7" X 1.5"163.58mm X 93.98mm X 38.1mm115V 3Ø
5V - 50V
42A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M31101000W7.89" X 5.6" X 3.3"200.41mm X 142.24mm X 83.82mm115V 3Ø
5V - 50V
40A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M27051500W14.88" X 9.12" X 1.96"377.95mm X 231.65mm X 49.78mm115V 3Ø
270V
5.5A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M2861500W8.86" X 6.3" X 1.9"225.04mm X 160.02mm X 48.26mm115V 3Ø
12V - 48V
54A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M1671600W7.23" X 4.21" X 1.72"183.64mm X 107.01mm X 43.69mm115V 3Ø
3.3V - 50V
55A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M1862000W7.52" X 5.81" X 1.6"191.01mm X 147.57mm X 40.64mm115V 3Ø
5V - 60V
80A
MIL-STD-810, MIL-STD-461
M22862000W9.6" X 7.5" X 2.3"243.84mm X 190.5mm X 58.42mm115V 3Ø
12V - 36V
72A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M27032500W6.35" X 5.71" X 1.56"161.29mm X 145.03mm X 39.62mm115V 3Ø
100V - 320V
20A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M28032500W9.8" X 6.42" X 1.6"248.92mm X 163.07mm X 40.64mm230V 3Ø
100V - 320V
20A
MIL-STD-810, MIL-STD-461
M92033200W13.84" X 6.34" X 4.07"351.54mm X 161.04mm X 103.38mm440V 3Ø
24V - 80V
110A
MIL-STD-1399, MIL-STD-810, MIL-DTL-901, MIL-STD-461
M92043200W17.19" X 6.34" X 5"436.63mm X 161.04mm X 127mm440V 3Ø
24V - 80V
110A
MIL-STD-1399, MIL-STD-810, MIL-DTL-901, MIL-STD-461
M92053600W14" X 6.34" X 4.5"355.6mm X 161.04mm X 114.3mm440V 3Ø
270V - 360V
13.5A
MIL-STD-1399, MIL-STD-810, MIL-DTL-901, MIL-STD-461
Two Outputs
M91490W4.92" X 3.15" X 1.5"124.97mm X 80.01mm X 38.1mm115V 3Ø
#1:5V - 28V
#2:-12V - 28V
#1:13A
#2:6.5A
MIL-STD-810, MIL-STD-461
Five Outputs
M191300W6" X 5" X 1.25"152.4mm X 127mm X 31.75mm115V 3Ø
#1:3.3V - 12V
#2:3.3V - 12V
#3:3.3V - 24V
#4:3.3V - 28V
#1:15A
#2:10A
#3:4A
#4:4A
#5:9A
MIL-STD-810, MIL-STD-461
2U Rackmount
Three Phase Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
One Output
M54808kW 440V 3Ø
150V - 350V
5 to 25AmpA
MIL-STD-1399, MIL-STD-810, MIL-DTL-901, MIL-STD-461
M92013600W17" X 19" X 3.47"431.8mm X 482.6mm X 88.14mm440V 3Ø
48V - V
75A
MIL-STD-1399, MIL-STD-810, MIL-STD-461
AC+DC-DC Power Supplies
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M1467340W6.3" X 9.17" X 1.18"160mm X 233mm X 30mm90-265V
#1:2.5V - 50V
#2:2.5V - 50V
#3:2.5V - 50V
#4:2.5V - 50V
#5:2.5V - 50V
#1:25A
#2:16A
#3:18A
#4:6A
#5:4A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M7242500W8.99" X 4.99" X 1.82"228.35mm X 126.75mm X 46.23mm115/230/28V
12V - 36V
20A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
DC-AC Inverters
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M52521VA9.71" X 6.5" X 1.81"246.63mm X 165.1mm X 45.97mm22V
115V - 230V
1Ø
8.6A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M6242100VA4.2" X 4.6" X 1.4"106.68mm X 116.84mm X 35.56mm28V
26V - 115V
2.3A
MIL-STD-810, MIL-STD-461
M4252350VA7" X 6.5" X 0.85"177.8mm X 165.1mm X 21.59mm28V
75V - 115V
3.5A
MIL-STD-810, MIL-STD-461
M7032 1000VA10.63" X 4" X 5.5"270mm X 101.6mm X 139.7mm28DCV
115V - V
1Ø
8.7A
MIL-STD-704, MIL-STD-810
VITA 62 VPX SOLUTIONS
VPX with Integrated Holdup
AC Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
Power Supply Outputs
M47061146W6U, 1.18"6U, 1.18"115V 3Ø
#1:12V
#2:aux 3.3V
#3:opt 12V
#4:opt -12V
#1:90A
#2:20A
#3:1A
#4:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461, SOSA™
DC Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
Power Supply Outputs
M4012350W3U, 1"3U, 1"28V
#1:12V
#2:3.3V
#3:5V
#4:aux 12V
#5:aux -12V
#6:aux 3.3V
#1:20A
#2:5A
#3:12A
#4:1A
#5:1A
#6:5A
MIL-STD-1275, DEF Stan 61-5 , MIL-STD-704, MIL-STD-810, MIL-STD-461
M4440370W3U, 1"3U, 1"28V  MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
Holdup Unit Outputs
M4262800W3U, 0.97"3U, 0.97"270V
270V
A
MIL-STD-704, MIL-STD-461
VPX 3U
AC Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
Power Supply Outputs
M4071800W3U, 1"3U, 1"115V 3Ø
#1:28V
#2:3.3V
#1:30A
#2:0.4A
DC Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
Power Supply Outputs
M4050150W3U, 0.8"3U, 0.8"28V
#1:12V
#2:3.3V
#3:5V
#4:aux 3.3V
#5:aux -12V
#1:2A
#2:15A
#3:12A
#4:1A
#5:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M4012350W3U, 1"3U, 1"28V
#1:12V
#2:3.3V
#3:5V
#4:aux 12V
#5:aux -12V
#6:aux 3.3V
#1:20A
#2:5A
#3:12A
#4:1A
#5:1A
#6:5A
MIL-STD-1275, DEF Stan 61-5 , MIL-STD-704, MIL-STD-810, MIL-STD-461
M4013350W3U, 1"3U, 1"28V
#1:12V
#2:3.3V
#3:5V
#4:aux 12V
#5:aux -12V
#6:aux 3.3V
#1:20A
#2:5A
#3:12A
#4:1A
#5:1A
#6:5A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M4440370W3U, 1"3U, 1"28V  MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M2192600W3U, 1"3U, 1"28V
#1:12V
#2:3.3 AUXV
#1:50A
#2:15A
MIL-STD-1275, MIL-STD-704, MIL-STD-461, SOSA™
M4365600W3U, 1"3U, 1"28V
#1:12V
#2:3.3V
#3:5V
#4:aux 3.3V
#5:aux 12V
#6:aux -12V
#1:30A
#2:20A
#3:30A
#4:5A
#5:1A
#6:1A
MIL-STD-1275, DEF Stan 61-5 , MIL-STD-704, MIL-STD-810, MIL-STD-461
M4465600W3U, 1"3U, 1"28V
#1:12V
#2:3.3V
#3:5V
#4:aux 3.3V
#5:aux 12V
#6:aux -12V
#1:30A
#2:20A
#3:30A
#4:5A
#5:1A
#6:1A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M4054800W3U, 1"3U, 1"28V
#1:12V
#2:aux_3.3V
#1:64A
#2:15A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461, SOSA™
M4094 800W3U, 1"3U, 1"270V
#1:12V
#2:aux_3.3V
#1:64A
#2:15A
MIL-STD-704, MIL-STD-810, MIL-STD-461, SOSA™
M4154 800W3U, 1.47"3U, 1.47"28V
#1: V - 12V
#2:V - 3.3V
#3:V - 12V
#1:64A
#2:15A
#3:64A
MIL-STD-1275, DEF Stan 61-5 , MIL-STD-704, MIL-STD-810, MIL-STD-461, SOSA™
Holdup Unit Outputs
M4262800W3U, 0.97"3U, 0.97"270V
270V
A
MIL-STD-704, MIL-STD-461
VPX 6U
AC Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
Power Supply Outputs
M40691000W6U, 1"6U, 1"115V 1Ø
#1:12V
#2:5V
#3:aux 3.3V
#4:aux 12V
#5:aux -12V
#1:50A
#2:25A
#3:25A
#4:1A
#5:1A
MIL-STD-810, MIL-STD-461
M47001000W6U, 1.2"6U, 1.2"115acV 3Ø
#1:12VV
#2:12VV
#3:5VV
#4:3.3V auxV
#5:12V auxV
#6:12V auxV
#1:0 to 30AA
#2:0 to 30AA
#3:0 to 30AA
#4:0 to 20AA
#5:0 to1AA
#6:0 to 1AA
M47051100W6U, 1.18"6U, 1.18"115V 3Ø
#1:12V
#2:aux 3.3V
#3:opt 12V
#4:opt -12V
#1:105A
#2:30A
#3:1A
#4:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461, SOSA™
M47061146W6U, 1.18"6U, 1.18"115V 3Ø
#1:12V
#2:aux 3.3V
#3:opt 12V
#4:opt -12V
#1:90A
#2:20A
#3:1A
#4:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461, SOSA™
M40671200W6U, 1"6U, 1"115V 3Ø
#1:12V
#2:12V
#3:5V
#4:aux 3.3V
#5:aux 12V
#6:aux -12V
#1:35A
#2:35A
#3:40A
#4:15A
#5:1A
#6:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461, RTCA-DO160
M41671200W 115V 3Ø
M47011200W6U, 1"6U, 1"115V 3Ø
#1:12V
#2:aux 3.3V
#3:opt 12V
#4:opt -12V
#1:100A
#2:30A
#3:1A
#4:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461, SOSA™
DC Inputs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
Power Supply Outputs
M4468900W6U, 1.6"6U, 1.6"28V
#1:12V
#2:12V
#3:5V
#4:aux 3.3V
#5:aux 12V
#6:aux -12V
#1:40A
#2:40A
#3:12A
#4:12A
#5:1A
#6:1A
MIL-STD-1275, MIL-STD-704, MIL-STD-810, MIL-STD-461
M40901200W6U, 1"6U, 1"270V
#1:12V
#2:12V
#3:12V
#4:3.3V
#5:12V
#6:-12V
#1:35A
#2:35A
#3:40A
#4:15A
#5:1A
#6:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461, RTCA-DO160
M42681200W6U, 1"6U, 1"28V
#1:12V
#2:12V
#3:5V
#4:aux 3.3V
#5:aux 12V
#6:aux -12V
#1:40A
#2:40A
#3:12A
#4:12A
#5:1A
#6:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M4703 1200W6U, 1"6U, 1"270V
#1:12V
#2:aux 3.3V
#3:opt 12V
#4:opt -12V
#1:105A
#2:30A
#3:1A
#4:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461, SOSA™
M47071200W6U, 1.18"6U, 1.18"270V
#1:12V
#2:aux 3.3V
#3:opt 12V
#4:opt -12V
#1:100A
#2:30A
#3:1A
#4:1A
MIL-STD-704, MIL-STD-810, MIL-STD-461, SOSA™
Uninterruptible Power Supplies
1U Rackmount
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M10121.25kW19" X 24" X 1.72"482.6mm X 609.6mm X 43.69mm115/230V 1Ø
115V - V
11A
MIL-STD-704, MIL-STD-810, MIL-STD-461, RTCA-DO160
3U Rackmount
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M1201kW19" X 28" X 5.25"482.6mm X 711.2mm X 133.35mm115/230V
112V - 118V
8.7A
MIL-STD-1399, MIL-STD-810, MIL-STD-461
M359-12.0kW19" X 22" X 5.2"482.6mm X 558.8mm X 132.08mm115V 1Ø
112V - 118V
17.4A
MIL-STD-1399, MIL-STD-810, MIL-DTL-901, MIL-STD-167, MIL-STD-461
M359-22.0kW19" X 22" X 5.2"482.6mm X 558.8mm X 132.08mm115V 1Ø
112V - 118V
17.4A
MIL-STD-1399, MIL-STD-810, MIL-DTL-901, MIL-STD-167, MIL-STD-461
M359-32.0kW19" X 22" X 5.2"482.6mm X 558.8mm X 132.08mm115V 3Ø
112V - 118V
17.4A
MIL-STD-1399, MIL-STD-810, MIL-DTL-901, MIL-STD-167, MIL-STD-461
M3622.5kW19" X 18.25" X 5.2"482.6mm X 463.55mm X 132.08mm115/230V 1Ø
#1:110V - 120V
#2:110V - 120V
21.7A
MIL-STD-1399, MIL-STD-810, MIL-DTL-901, MIL-STD-167, MIL-STD-461
4U Rackmount
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M1101kW19" X 21" X 6.9"482.6mm X 533.4mm X 175.26mm115/230V
112V - 118V
8.7A
MIL-STD-1399, MIL-STD-810, MIL-STD-461
M1301.5kW19" X 21" X 6.9"482.6mm X 533.4mm X 175.26mm115/230V
112V - 118V
13A
MIL-STD-1399, MIL-STD-810, MIL-STD-461
M1402kW19" X 21" X 6.9"482.6mm X 533.4mm X 175.26mm115/230V
112V - 118V
17.4A
MIL-STD-1399, MIL-STD-810, MIL-STD-461
GCU Power Supplies
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M7049400W3.62" X 3.69" X 1.65"91.95mm X 93.73mm X 41.91mm28V
24V - 50V
26.785A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M495600W4.53" X 3.94" X 1.57"115mm X 100mm X 40mm115V 3Ø
24V - 50V
25A
MIL-STD-704, MIL-STD-810, MIL-STD-461
M27812800W9.84" X 7.09" X 4.33"250mm X 180mm X 110mm115V 3Ø
39V - 200V
100A
MIL-STD-704, MIL-STD-810, MIL-STD-461
Accessories
Battery Chargers
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M346-1  115V
Battery Packs
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M333-4 19" X 22" X 3.5"482.6mm X 558.8mm X 88.9mm108V  MIL-STD-810, MIL-DTL-901, MIL-STD-461
EMI Filters
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M1987300W4.18" X 3.97" X 1.34"106.15mm X 100.71mm X 34.04mm115V 1Ø
85V - 265V
5A
MIL-STD-1399, MIL-STD-810, MIL-STD-461
M4916500W4.61" X 1.8" X 1.18"117.1mm X 45.7mm X 30mm115V 1Ø
#1:85V - 265V
#2:103V - 127V
#1:10A
#2:10A
MIL-STD-810
M32892000W5.91" X 2.56" X 1.34"150.11mm X 65.02mm X 34.04mm115V 3Ø  MIL-STD-704, MIL-STD-810
Voltage Suppression
SeriesPowerDimensionsInput VOutput VMax. Curr.Designed to Meet
M1020 3.63" X 3.93" X 1.9"92.3mm X 99.9mm X 48.2mmV

Frequently Asked Questions

These rugged DC-DC converters are designed for aerospace and defense applications such as avionics, radar systems, military vehicles, UAVs, naval systems, communication equipment, and C4ISR platforms, where consistent power conversion is required.

Bel Aerospace & Defense

P: +49 4261 9429979

Sales office:

Amelia-Mary-Earhart-Str. 8
60549 Frankfurt am Main
Germany

This email address is being protected from spambots. You need JavaScript enabled to view it.

Categories
About Us Contact SupportMarketingNewsletterBel Fuse, Inc
© 2026 Bel Aerospace & Defense | International Military Power and Communication Solutions
Created by Mark Media Group
